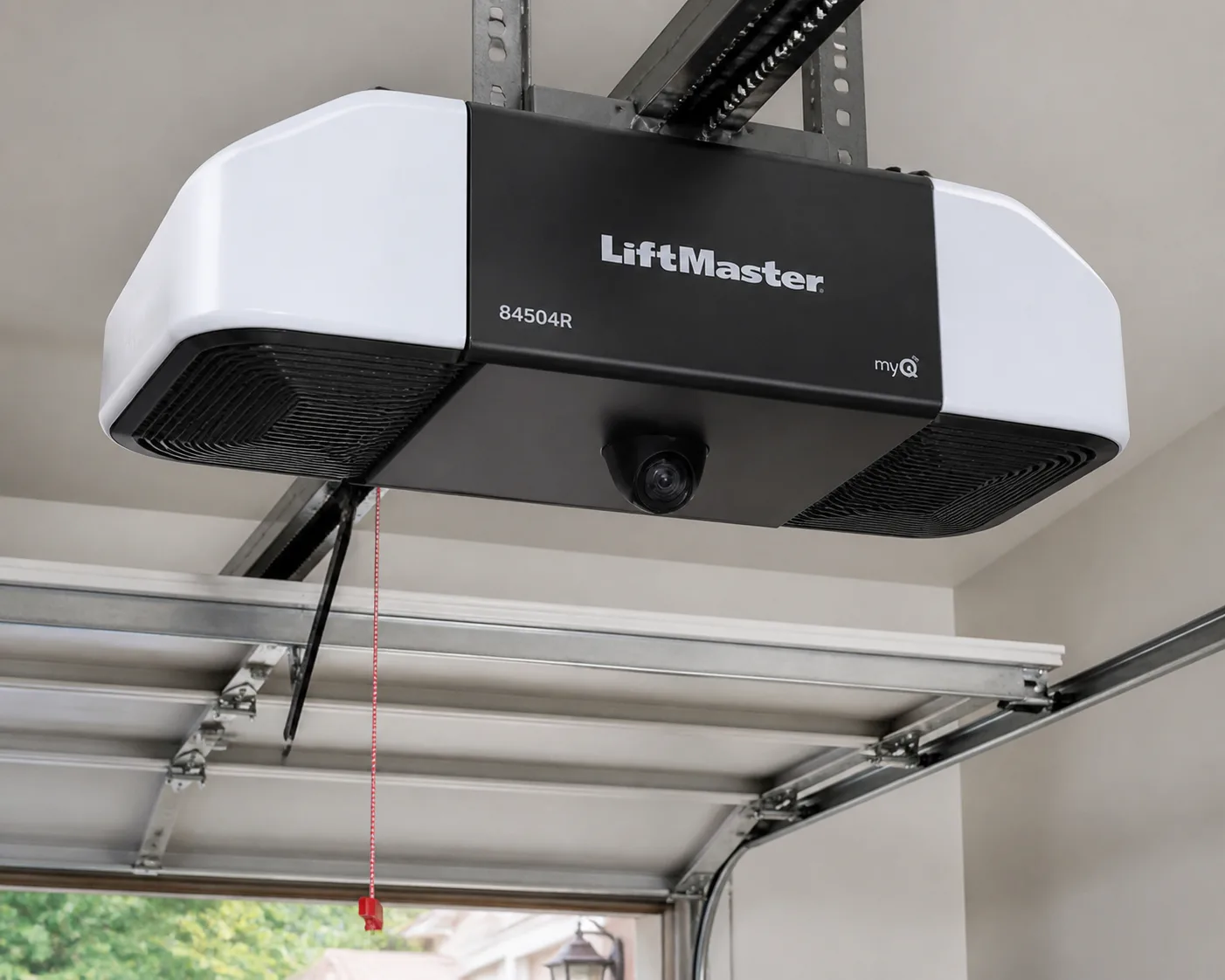

The LiftMaster 84504R is a modern, belt-drive residential garage door opener featuring built-in HD video monitoring, two-way audio, myQ smart connectivity, and integrated battery backup power. Designed for smooth and quiet operation, it is an ideal replacement opener for homeowners who want reliable performance and remote visibility over their garage space. Upgrading to the LiftMaster 84504R provides modern convenience while keeping your garage safe and accessible during unexpected power loss.

Understanding the LiftMaster 84504R Smart Opener System

Modern garage door openers have evolved beyond simple motor-driven gearboxes. Today's residential entry systems serve as central home access hubs, blending security, smart home automation, and quiet mechanical operation. The LiftMaster 84504R is engineered specifically for homes where quiet performance is essential, such as properties with living spaces located directly above or adjacent to the garage bay.

At the core of the LiftMaster 84504R is a permanent magnet DC motor paired with a steel-reinforced rubber belt drive system. Much like the LiftMaster 84505, it is engineered for smooth, low-vibration operation. Unlike traditional chain-drive openers that transmit vibration into the framing of the home, belt-drive units reduce noise transmission significantly. This quiet operation is particularly beneficial during early morning departures or late evening arrivals in dense suburban neighborhoods around Cambridge, Somerville, and Brookline.

Beyond quiet operation, the LiftMaster 84504R incorporates an integrated 1080p camera with night vision and two-way audio. Controlled through the myQ mobile application, this camera allows homeowners to check garage activity live, view saved event clips, and speak directly to anyone inside the garage bay. Integrated battery backup ensures that even during harsh New England winter coastal storms or summer grid disruptions in Newton and Quincy, your automatic opener continues to open and close your door safely without manual cranking.

Additional built-in performance features include soft-start and soft-stop motor control, which reduces physical wear on the garage door hardware, tracks, and rollers. Electronically monitored travel limits automatically adjust operational force to maintain smooth motion throughout the door's opening and closing cycles.

Pre-Installation Inspection and System Compatibility Checks

Before installing a new LiftMaster 84504R opener, the mechanical condition of the existing garage door must be evaluated thoroughly. An automatic opener is designed only to push and pull a properly balanced door along a clean path. It is never intended to lift an unbalanced door or force a door past binding or damaged sections of the garage door track system.

High-tension spring assemblies, counter-balance cables, bottom brackets, and winding cones carry immense mechanical energy. Improper handling of these high-tension components can result in severe physical injury. The U.S. Consumer Product Safety Commission (CPSC) cautions homeowners against performing DIY repairs or adjustments on high-tension garage door springs and lifting cables. If high-tension hardware shows signs of wear or failure, contact experienced professionals before installing a new opener motor.

When preparing for an opener replacement, inspect the following hardware components and operational requirements:

• Garage door track system integrity: Inspect the vertical and horizontal tracks for dents, misalignments, rust accumulation, or structural twists.

• Hardware and structural framing: Ensure the mounting header board above the door opening and the ceiling joists are solid, unrotted, and securely fastened to the building structure.

• Electrical supply: Confirm that an appropriate electrical outlet is positioned near the ceiling mounting area according to local electrical safety standards.

• Wi-Fi signal strength: Verify that your home's 2.4 GHz wireless network reaches into the garage bay with sufficient signal strength to support live HD video streaming.

• Safety sensor clearance: Identify clean, unobstructed wall locations near the bottom of the door opening to install the infrared safety reversing sensors.

• Tools and hardware required: Prepare a socket wrench set, screwdrivers, level, step ladder, tape measure, solid structural mounting brackets, and safety glasses.

How to Install and Configure the LiftMaster 84504R Opener (Step-by-Step Guide)

Inspect and clear the garage door track system

Begin by checking the full physical pathway of the garage door. Inspect the garage door track system to ensure it is free from debris, accumulated grease, or loose mounting brackets. Verify that all hinges and rollers move freely along the track channels. Clear any tools or obstacles away from the door opening before beginning any assembly work.

Assemble the belt rail and motor head

Lay out the opener rail sections on a flat, clean surface inside the garage bay. Join the rail segments together according to the LiftMaster assembly guidelines, sliding the trolley mechanism onto the rail before securing the ends. Attach the assembled rail to the main motor unit using the included mounting hardware, ensuring the drive belt is routed smoothly around the tensioner pulley and drive sprocket without twisting.

Mount the header bracket to structural framing

Locate the vertical centerline of the garage door and mark it on the wall header above the door. Position the LiftMaster header bracket on this centerline, ensuring it attaches directly to solid structural framing studs or a reinforced wooden mounting plate. Secure the header bracket using high-grade lag bolts, then lift the front of the rail assembly to pin it into the header bracket.

Hang the motor unit from ceiling joists

Raise the rear motor head of the LiftMaster 84504R off the ground using a sturdy step ladder or support stand. Use heavy-gauge perforated steel angle iron attached securely to ceiling structural joists to fabricate a solid mounting hanging bracket. Fasten the opener motor unit to the ceiling bracket, making sure the unit is level and centered to prevent uneven mechanical stresses on the belt drive.

Attach the door bracket and connecting arm

Install the door mounting bracket onto the top section panel of the garage door along the vertical centerline. For light steel or insulated door panels, install adequate reinforcement plates to prevent panel flexing during operation. Connect the straight and curved door arm sections using clevis pins and cotter rings, linking the door bracket directly to the rail trolley.

Install and wire the safety reversing sensors

Mount the photoelectric safety reversing sensors on each side of the garage door opening, positioned close to the floor level. Route the low-voltage sensor wires up the wall, along the ceiling, and into the quick-connect terminals on the rear panel of the LiftMaster 84504R motor head. Align the optical lenses until the indicator LEDs on both sensors illuminate steadily, confirming an uninterrupted safety beam across the door threshold.

Program travel limits and connect myQ smart features

Plug the opener into the ceiling electrical outlet and activate the intuitive electronic travel limit programming menu on the wall control panel or motor unit. Set the open and close limits so the door seals firmly against the floor without bowing the rail assembly. Once travel limits are established, open the myQ mobile application on your smartphone, follow the on-screen prompts to connect the opener to your home network, and adjust the integrated video camera lens to your preferred viewing angle.

Post-Installation Maintenance and Long-Term Performance Care

Regular maintenance ensures that your LiftMaster 84504R smart opener operates quietly and reliably for years to come. Because New England brings severe seasonal weather changes—from humid summers in Medford and Malden to freezing cold snaps in Waltham and Watertown—garage door components expand, contract, and experience elevated wear throughout the year.

When performing routine operational care, proper lubrication techniques are critical. Apply a spray lubricant designed specifically for garage doors to the steel roller bearings, hinge pivot pins, and end bearing plates. Never apply grease or liquid lubricant inside the garage door track system channels. Adding oil or grease inside the tracks attracts dust, dirt, grit, and road salt, creating a gummy paste that causes roller slippage, track binding, and premature mechanical failures.

In addition to hardware care, keep the technological components of your LiftMaster 84504R operating clearly:

• Clean sensor lenses: Wipe the infrared safety sensor lenses with a dry microfiber cloth every few months to remove dust, spider webs, and salt film residue.

• Maintain camera clarity: Gently clean the integrated HD video camera lens using a soft cloth and lens cleaning solution to ensure clear video streams.

• Check battery backup readiness: Test your backup battery system annually to verify that it holds a sufficient charge to power the opener during storm-related power outages.

• Inspect belt tension: Look along the length of the rubber belt to ensure it remains taut and free from visible fraying or loose slack.

Troubleshooting Common Issues and When to Call a Professional

If your LiftMaster 84504R experiences operational issues, systematic troubleshooting can help isolate the cause. If the wall door button operates normally but the smart app loses connection, the issue is often related to home network Wi-Fi signal drops or router updates. Reconnecting the opener through the myQ app settings usually restores smart functionality quickly.

If the opener motor runs but the garage door won't open, verify that the emergency manual release cord has not been pulled, disengaging the trolley from the drive belt. If the garage door starts to close but immediately reverses while the opener lights flash, inspect the optical safety reversing sensors for misalignment or path blockages near the bottom of the floor.

While basic troubleshooting is safe, complex mechanical repairs require expert assistance. Homeowners should stop using the opener and contact experienced professionals immediately if they notice any of the following serious conditions:

• Snap marks, gaps, or structural breaks that require professional garage door spring repair.

• Frayed, unraveling, or detached wire lifting cables.

• A door panel that has popped out or come off the garage door track system.

• Bent, twisted, or severely rusted structural track sections.

• Uneven, crooked, or binding door movement during travel.

• Loud popping, metallic grinding, or unusual straining noises from the motor head.

Due to the extreme tension stored within counter-balance spring systems, attempting to loosen, repair, or adjust high-tension garage components without proper tools can lead to severe personal injury. The U.S. Consumer Product Safety Commission (CPSC) strongly advises home dwellers to leave spring and cable adjustments strictly to trained technicians.

When mechanical failures arise or you require safe garage door opener repair, the experienced professionals at Prime Garage Doors are ready to help. We provide free estimates, 24/7 phone support at (844) 321-0914, and same-day service availability across Greater Boston.

Summary: LiftMaster 84504R Key Takeaways

The LiftMaster 84504R belt-drive opener is a smart investment for homeowners seeking quiet performance, advanced smartphone video monitoring, and integrated battery backup security. Proper pre-installation checks, precise limit configuration, and clean maintenance of your garage door system ensure safe, smooth operation in all seasonal weather conditions.

• Quiet belt-drive operation and DC motor tech ideal for living spaces located above the garage bay.

• Integrated 1080p myQ smart video camera and two-way audio provide remote security monitoring.

• Battery backup system keeps your automatic door operational during regional power outages.

• Always keep the inside of the garage door track system clean and unlubricated; apply silicone lube only to moving roller bearings and hinges.

• High-tension hardware like springs and cables require professional service due to severe safety risks highlighted by the CPSC.
